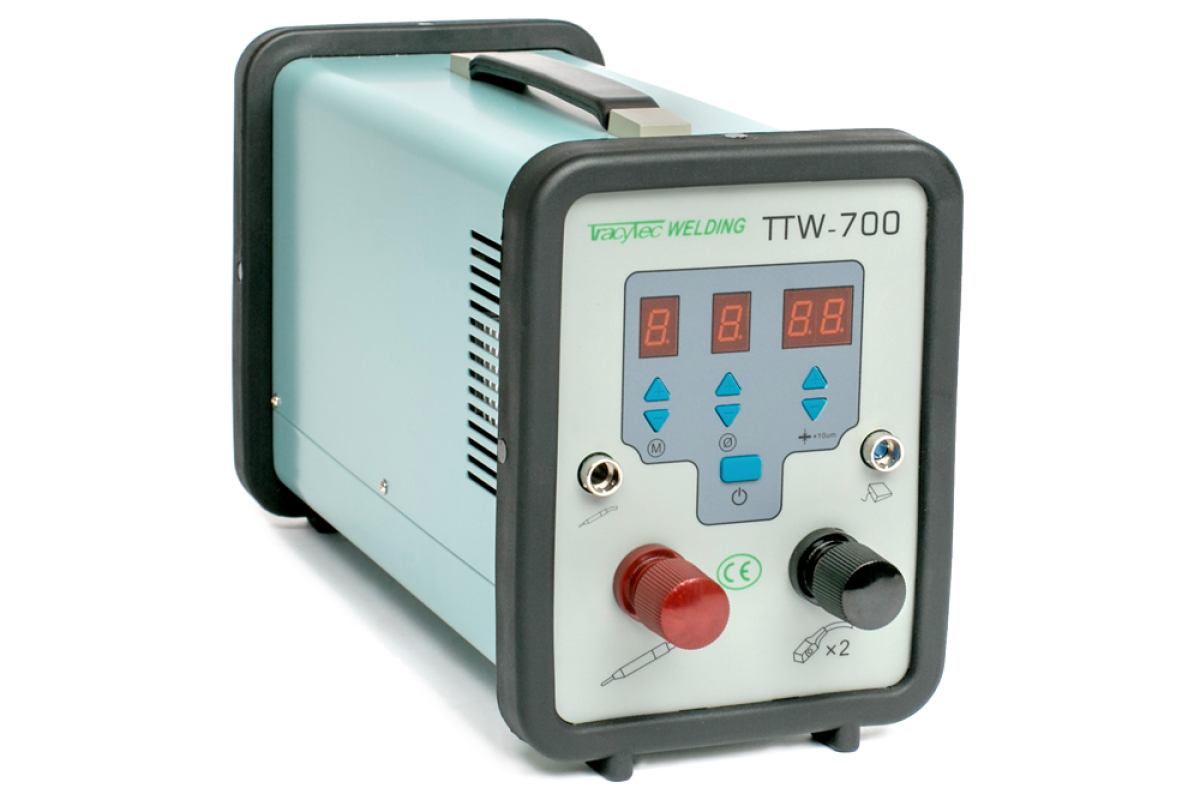

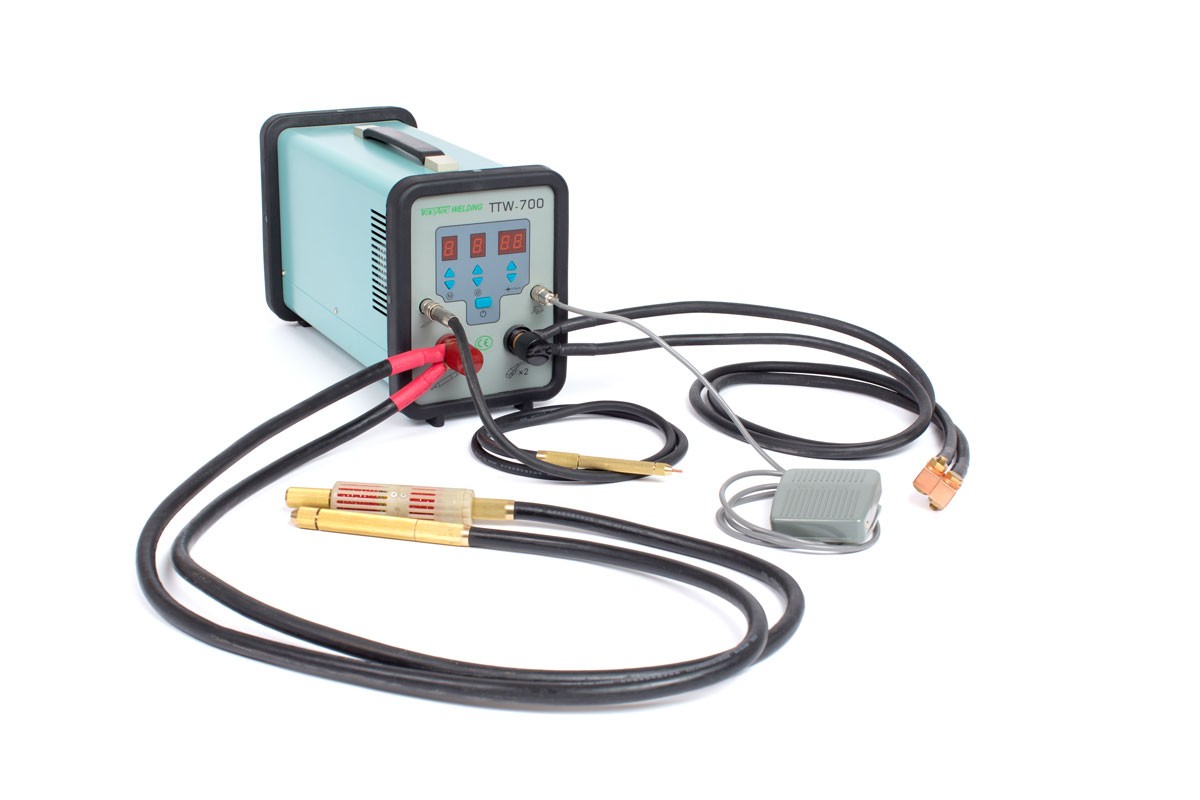

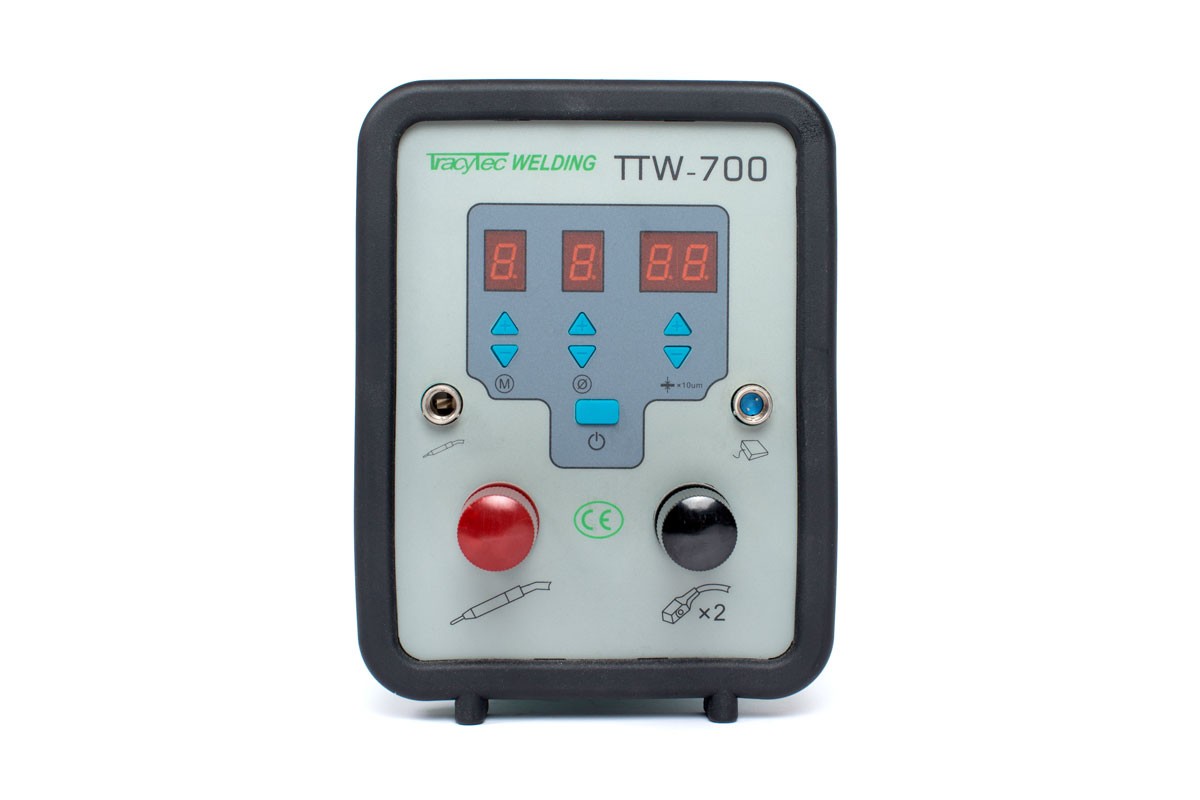

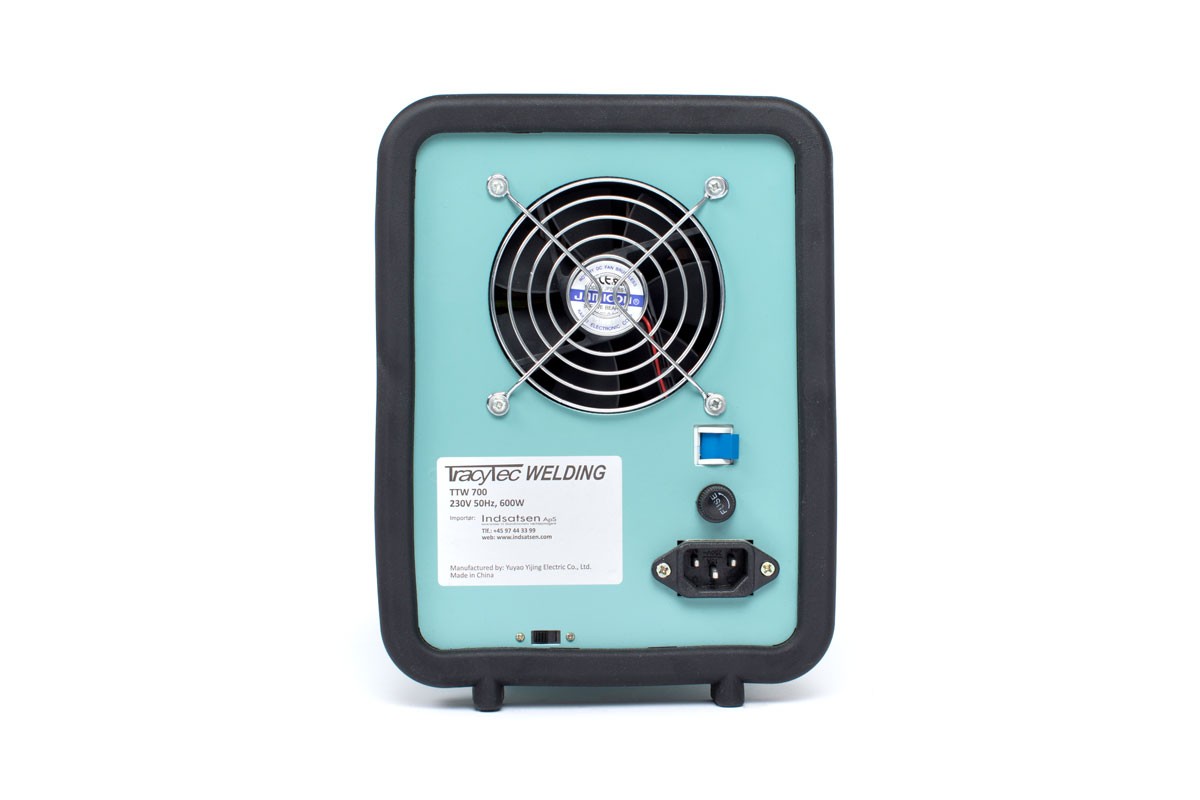

TTW-700

TTW-700

Micro Repair Welder

TTW-700 can weld all kind of ferrous metal. Excellent for repairing wear, tear and erosion damage on moulds, dies and tools.

Feature

  1. Firm: The welded area can sub stain machining like milling, EDM, grinding etc. without peeling off. The sheets combines completely with the base material
  2. Precise.: Weld sheet between 0,03 and 0,22 mm. Less waste of welding material and much easier refurbishment after welding.
  3. Minimum annealing: Heats only a tiny spot. Minimize damage from annealing.
  4. No metallurgic change: The welded area remain like original hardness. Different hardness can be combined.
Specifications
Function modes Precise/normal; Single/continuous
MEAS 360 * 210 * 150 mm
N.W 9 KG
G.W 14,5 KG
Power 230V, 50 Hz
Power consume 5W-600W
Instantaneous output power ≥ 30KW
Instantaneous pulse currency 1, 2, 3, 4, 5
Frequency range 3-10 Hz. Automatisk justeret
Color Turquize
